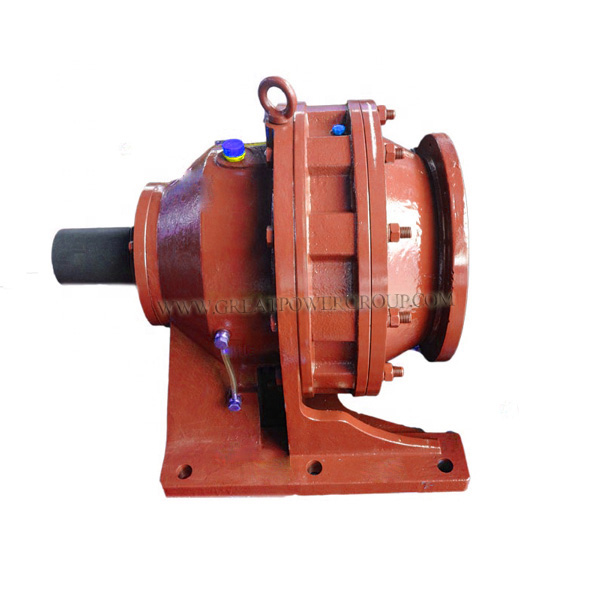

Taxanaha BW Cycloidal Pinwheel Reducer Gearbox

Sharaxaad Gaaban:

taxanaha BWwaa nooc ka mid ah aaladaha gudbinta kaas oo quseeya mabda'a gudbinta meeraha oo qaata meshing irbadda cirbadaha cycloidal. Gudbinta Cycloidal reducer waxa loo qaybin karaa unug galinta, unugga deceleration iyo unugga wax soo saarka. Qaybaha wadista ugu waaweyni waxay qaataan birta aluminium tayo sare leh. Kaarbursiga, deminta iyo shiididda ka dib, saxnaanta iliga ee qalabka ayaa gaari kara 6 heerar. Adkeydka iliga ee dhammaan qalabka gudbinta wuxuu gaari karaa HRC54-62 ka dib daawaynta, deminta iyo shiididda, dhammaan dhawaaqa gudbinta waa hooseeyaa, hufnaan sare, adeeg nolol dheer.

Faahfaahinta Alaabta

Tags Product

Sharaxaada Alaabta
taxanaha BWwaa nooc ka mid ah aaladaha gudbinta kaas oo quseeya mabda'a gudbinta meeraha oo qaata meshing irbadda cirbadaha cycloidal. Gudbinta Cycloidal reducer waxa loo qaybin karaa unug galinta, unugga deceleration iyo unugga wax soo saarka. Qaybaha wadista ugu waaweyni waxay qaataan birta aluminium tayo sare leh. Kaarbursiga, deminta iyo shiididda ka dib, saxnaanta iliga ee qalabka ayaa gaari kara 6 heerar. Adkeydka iliga ee dhammaan qalabka gudbinta wuxuu gaari karaa HRC54-62 ka dib daawaynta, deminta iyo shiididda, dhammaan dhawaaqa gudbinta waa hooseeyaa, hufnaan sare, adeeg nolol dheer.
Tilmaamaha Alaabta
1. Saamiga dhimista sare iyo hufnaanta.
2.Qaabka is haysta iyo mugga yar.
3. Hawlgal xasiloon iyo buuq yar.
4.Hawlgal lagu kalsoonaan karo iyo nolol adeeg oo dheer.
5.Awoodda xad-dhaafka ah ee xoogga leh, iska caabin xooggan oo saameyn ku leh, daqiiqad yar oo firfircooni ah.

Qiyaasta Farsamada

Nooca marxaladda Qaabka Saamiga Awood magaceed (KW) Torque magaca ah (N.m)
X/B Taxanaha Cycloidal Reducer hal-dhiyeye B09/X1 9-87 0.55-0.18 26-50
B0/X2 1.1-0.18 58-112
B1/X3 0.55-0.18 117-230
B2/X4 4-0.55 210-400
B3/X5 11-0.55 580-1010
B4/X6/X7 11-2.2 580-1670
B5/X8 18.5-2.2 1191-3075
B6/X9 15-5.5 5183-5605
B7/X10 11-45 7643
Nooca marxaladda Qaabka Saamiga Awood magaceed (KW) Torque magaca ah (N.m)
X/B Taxanaha Cycloidal Laba-dhiyeye B10/X32 99-7569 0.37-0.18 175
B20/X42 1.1-0.18 600
B31/X53 2.2-0.25 1250
B41/X63 2.2-0.25 1179-2500
B42/X64 4-0.55 2143-2500
B52/X84 4-0.55 2143-5000
B53/X85 7.5-0.55 5000
B63/X95 7.5-0.55 5893-8820
B74/X106 11-2.2 11132-12000
B84/X117 11-2.2 11132-16000
B85/X118 15-2.2 16430-21560
B95/X128 15-2.2 29400

Codsiga:
BW taxane cycloidal pinwheel-xawaaraha gearbox waxaa si weyn loogu isticmaalaa dharka, warshadaha iftiinka, macdanta, warshadaha kiimikada saliidda,mashiinka dhismaha, iwm.
